T-Mobile Arcadyan 5G Gateway (KVD21)

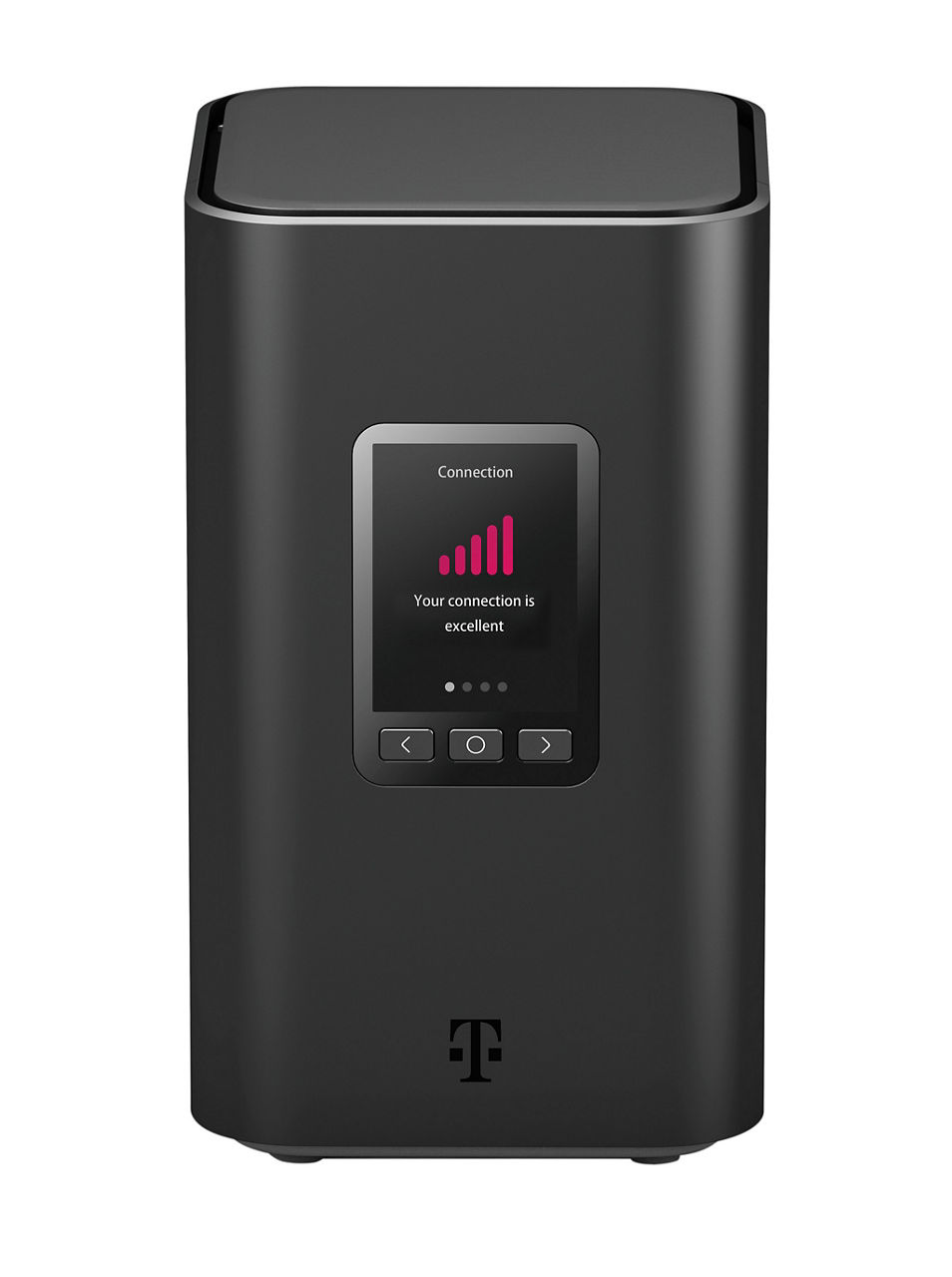

- Front

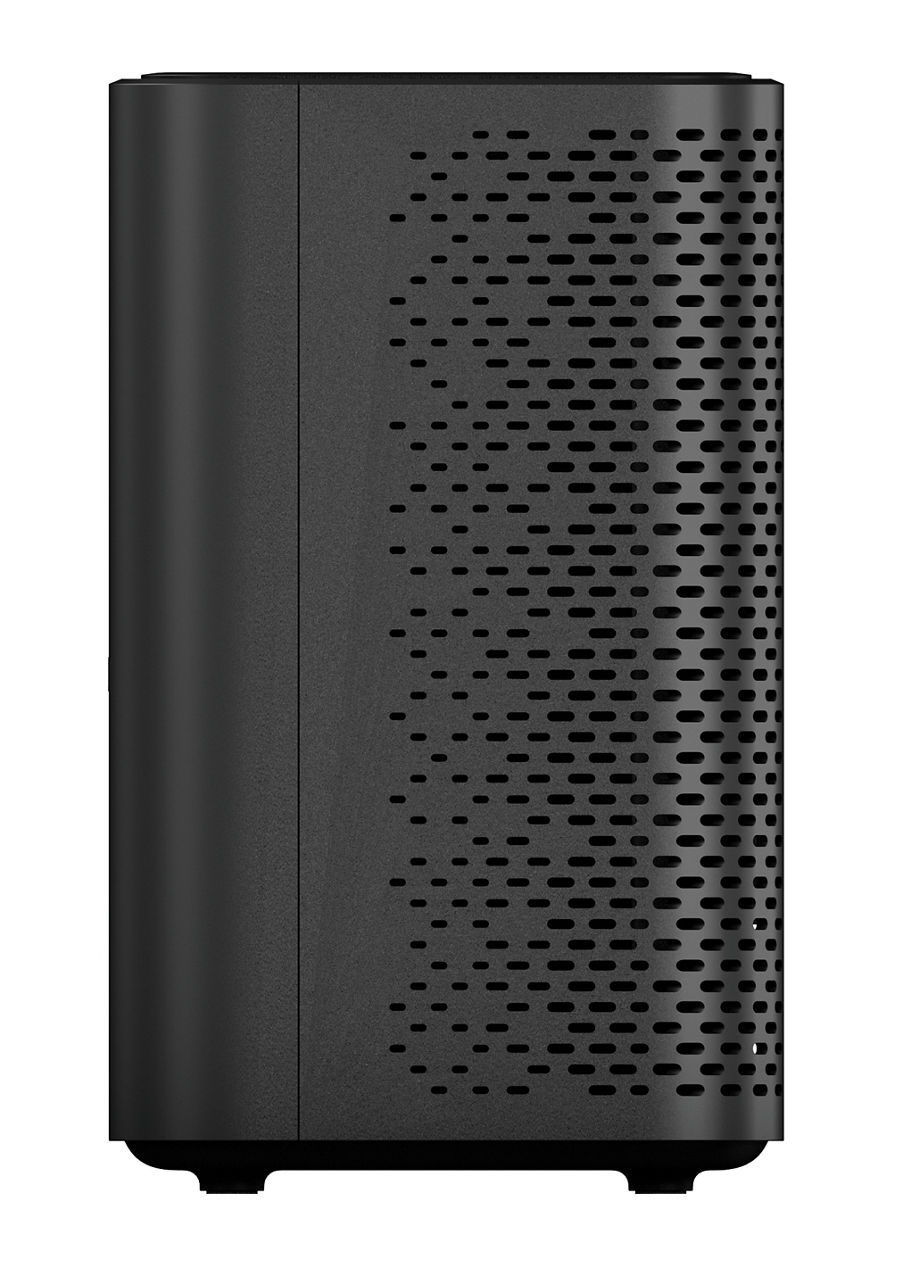

- Right Side

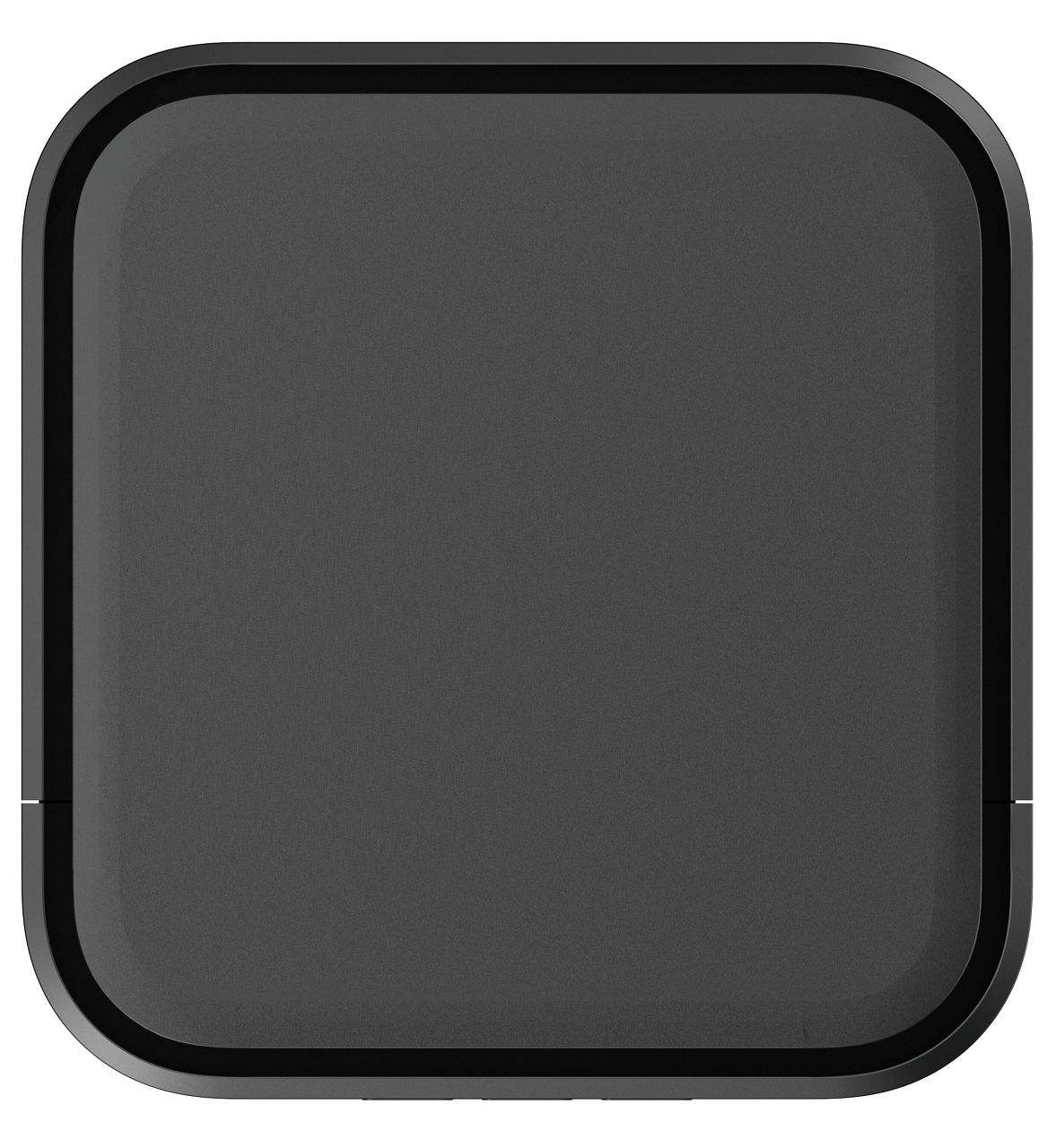

- Top

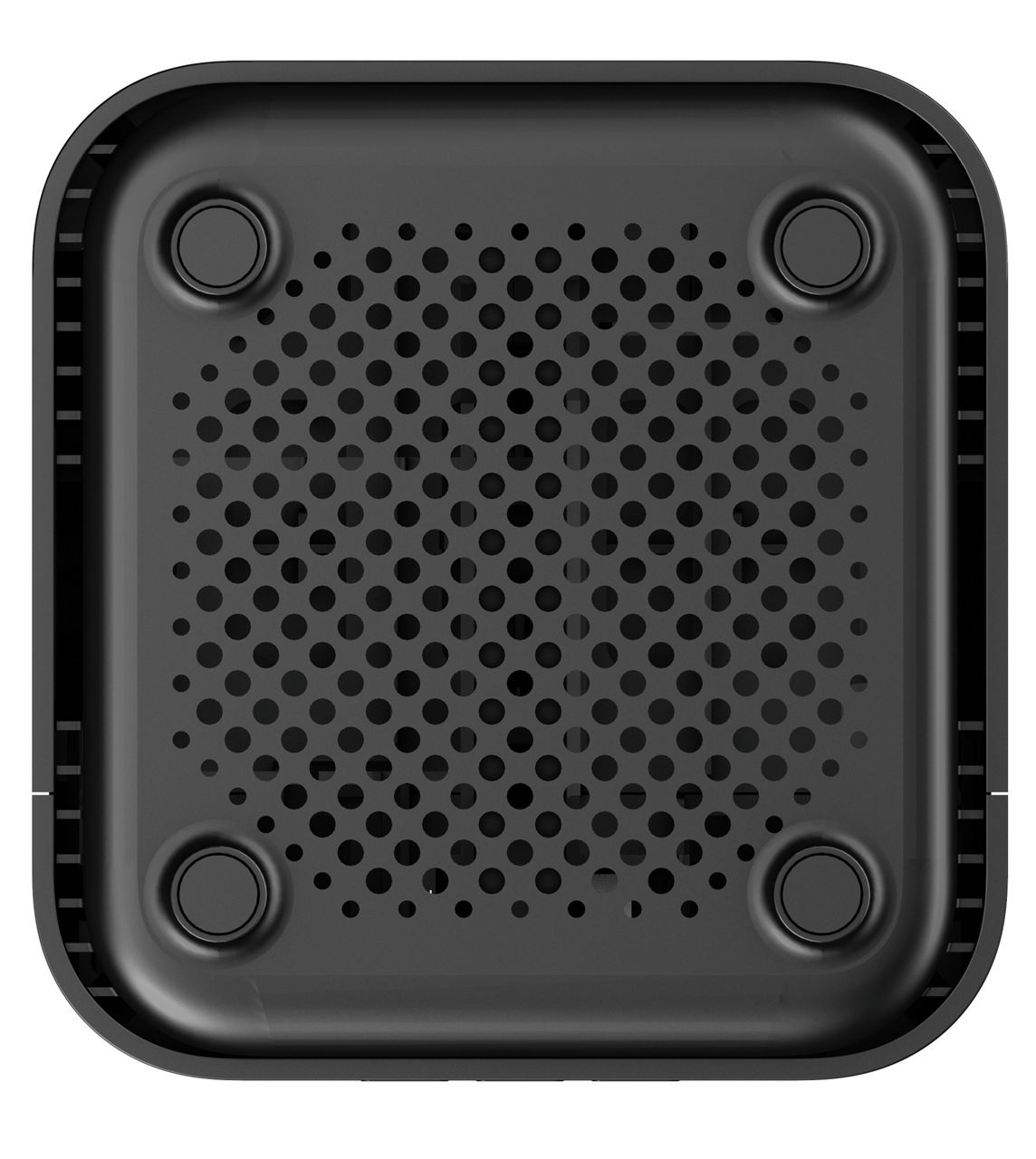

- Bottom

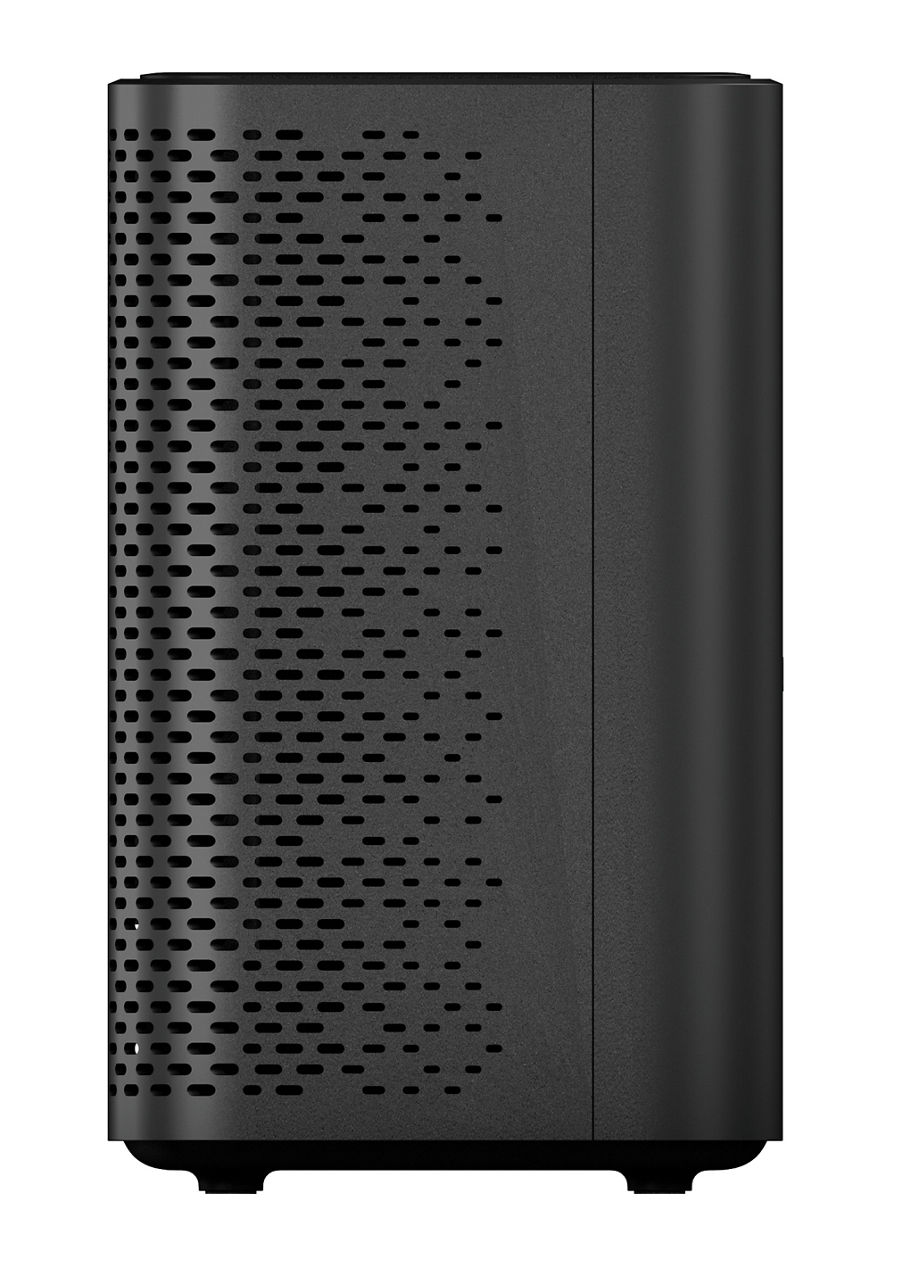

- Left Side

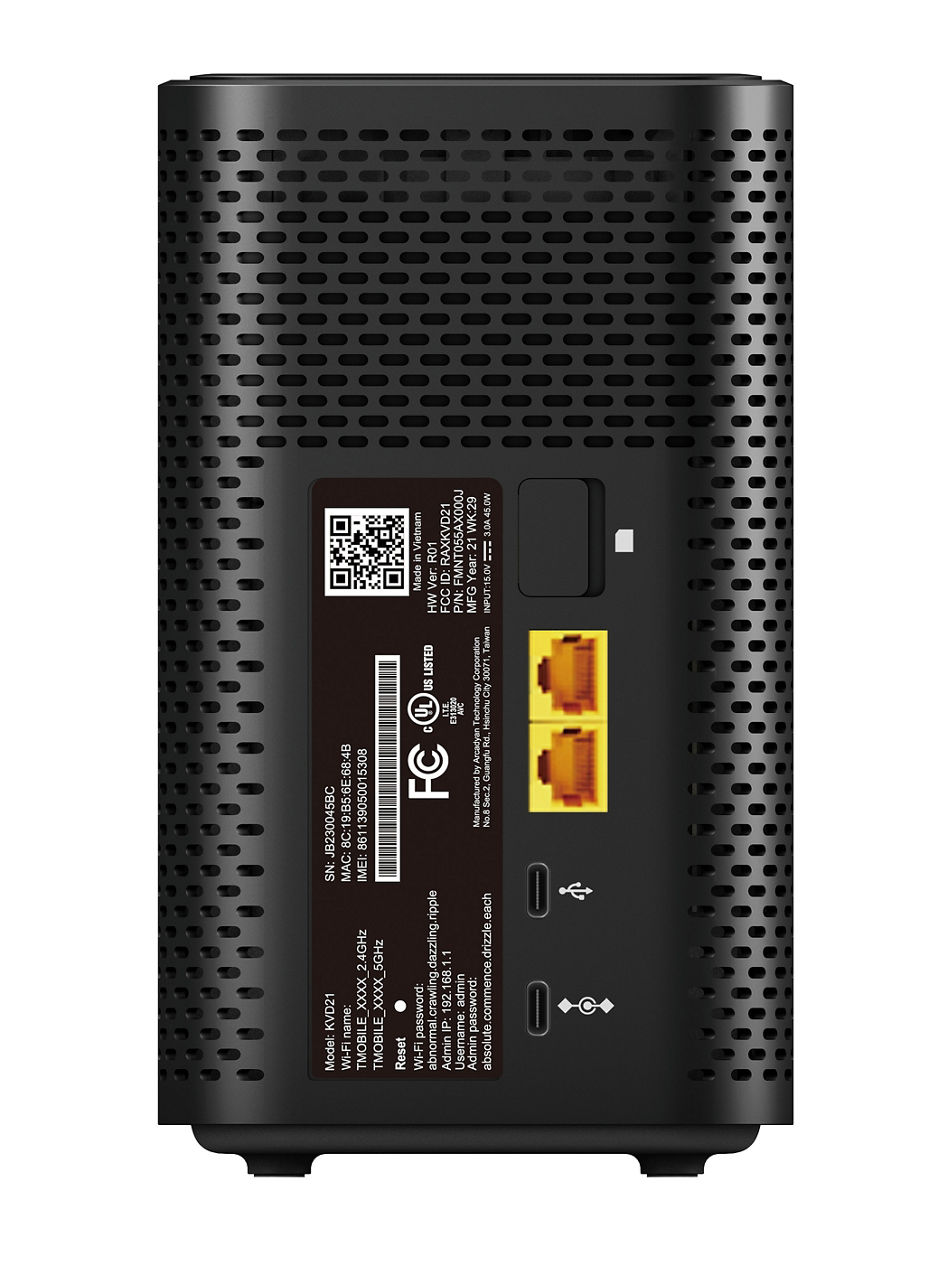

- Back
| Release Date | January 12, 2022 |
|---|---|
| AC Adapter | 100V-240V 12V / 1.2A |
| Dimensions | 7.52" Height, 4.73" Width |
| Operating Temperature Range | 0°C-40°C (0°F-104 °F) |
| Connections | Dual Band Wi-Fi 6 (802.11ax) with 4x4MIMO WPA2/WPA3 Wi-Fi Security Ethernet plugs 2xRJ-45 USB Type C x 1 for Regular Power Source USB Type C x 1 for Data (Not functional) Maximum recommended devices: 64 |
| Network | 5G bands: N41, N66, N71 4G LTE bands: B2, B4, B5, B12, B41, B46, B66, B71 |
| Broadcast Range | One gateway is enough to cover all areas of most average size homes. The Wi-Fi signal travels about the same distance as any other Wi-Fi signal, which ranges depending on interference and obstructions, but we estimate it will be approximately 30 feet. |
